Trang chủ » DKM Motor » AC Motor » Speed Controller FX1000A

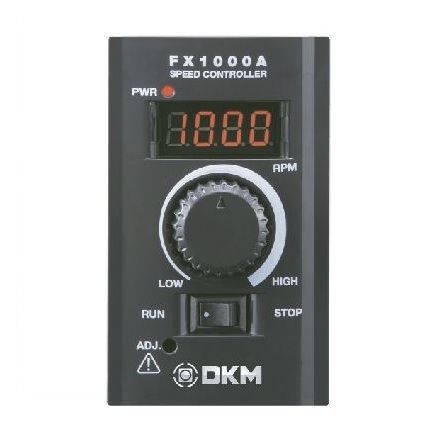

Speed Controller FX1000A

Speed Controller FX1000A

- Front panel potentiometer
- Unit type
(Connecting motor with easy-to-use connector)

System Configuration

FX1000A Controller Specification

ItemSpecification

Rated Input Voltage	220VAC 50/60Hz
Voltage Regulation	from -10% to +10% of 220VAC
Power Consumption	Below 4VA
Control Mode	Phase Loop Control (0 to 220VAC)
Power On/Off Signal	Red Color of LED
Speed Set Range	100-1750rpm
Ambient Temperature	from -10℃ to +55℃
Ambient Humidity	35-85% RH
Weight	300g
Dimension	60(w) x 100(h) x 117.5(d) mm
Insulation Resistance	100㏁ or more when DC500V mega is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity
Dielectric Strenght	Sufficient to withstand 1.5KV at 50/60Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity
Measurement	CAT lll

Circuit Diagram

Dimension

Connection Diagram
